LSK WIDE series -discontined-
LSK WIDE-CL
The LSK WIDE series has been discontinued.
The successor to LSK WIDE series is MAGNALIGHT.
■Products Feature
150φ large aperture lens with AR (anti-reflection) coating as standard.
The ENVL-CL model is a product with two lightings: epi-illumination around the lens
and transillumination on the box. The two lightings can be turned on/off individually.
The light source is a substrate type LED inside the shade,
and the light distribution characteristics are equivalent to those of 30W fluorescent tubes with a flat diffusion protective cover.
Continuous dimming between 100% and 50%.
■Products Name
LED Illuminated Magnifier
■Model

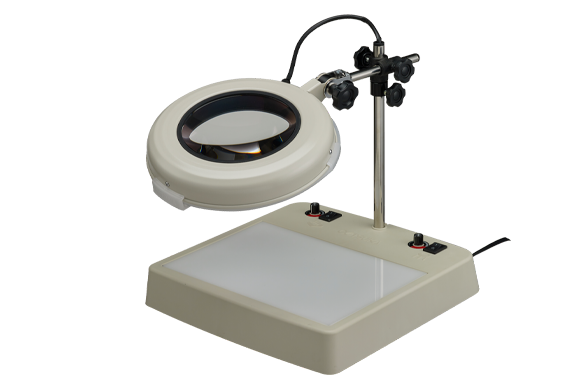

LSK WiDE-CL（ lightbox type illuminated magnifier)
■Product Specifications
| Lens | |
|---|---|
| Magnification Lineup | AR WIDE 2x, AR WIDE 3x, AR WIDE 4x ( anti-reflection coating ) |
| Lighting | |
| Light source | High color rendering white LED （Ra≧90）+ diffusion cover |
| Input voltage | 100～240V, 50/60Hz, plug type A * It is possible to use up to 125 ～ 240V by changing the cord with attached AC plug. For more information, please contact your dealer. |
| Power consumption | 11W+11W |
| continuous dimming | Available/100 ～ 50% |
| Body | |
| Weight (Kg) | 3.4 (Body weight without lens) |
| Total Height (mm) | 340 |
| Head Dimensions (mm) | ɸ263 |
| transillumination dimension (mm) | 210 × 298 |
| Vertical Post/Horizontal Bar (Diameter/mm) | ɸ16/ɸ13 |
| Operating Temperature Range | 5℃～35℃ |
| Dustproof and waterproof protection grade | IP20 (Indoor use only) |
