LSK-F

■Product features

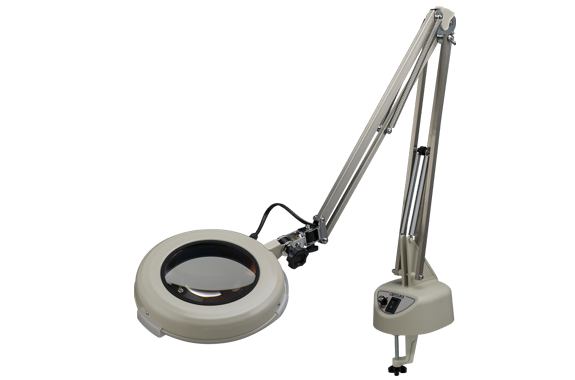

LSK-F is an arm-type illuminated magnifier that can be clamped to workbenches.
The arm can be moved and stopped in any position thanks to the springs, making the working space bigger.
The light source features a chip-on-board LED and has the same luminous intensity distribution as a 30W fluorescent light tube thanks to its flat diffusion cover.
Illumination can be adjusted anywhere from 100% to 50% brightness using a volume switch.
Using the LA-1 lens adapter makes it possible to use both the Φ150mm interchangeable wide lens and the Φ130mm interchangeable round lens series.

■Product Name
LED illuminated magnifier

■Model
LSK-F (Free arm illuminated magnifier)

■Product Specifications

Lens
Magnification Lineup 2x, 3x, 4x, 6x (round series interchangeable lens system)
WIDE 2x, WIDE 3x, WIDE 4x (WIDE series interchangeable lens system)
Anti-reflection Coating Lens Lineup Available/ 2x, 3x, 4x, 6x, WIDE 2x, WIDE 3x, WIDE 4x
Lighting
Light source White LED + diffusion cover
Input voltage 100~240V, 50/60Hz, plug type A
* It is possible to use up to 125 ~ 240V by changing the cord with attached AC plug.
For more information, please contact your dealer.
Power consumption 13W
Standby power 0W
Adjustable Lighting Available/100 ~ 10%
Body
Weight (Kg) 2.9 (Body weight without lens)
Arm Length (mm) 1000
Head Dimensions (mm) ɸ263
Clamp Range (mm) 15~60
Operating Temperature Range 5℃~35℃
Dustproof and waterproof protection grade IP20 (Indoor use only)
