■Product features

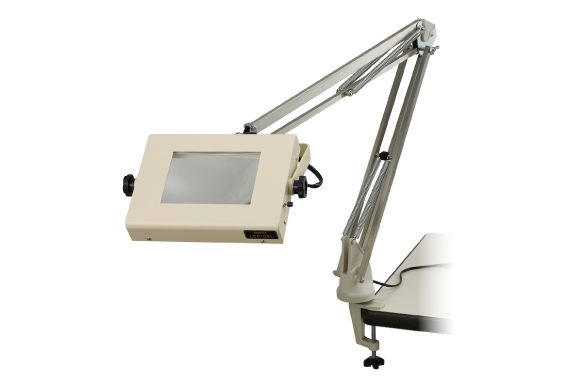

・ LED-OSL-4 model is an arm-type illumination magnifier that is clamped to a workbench or the like.
・ power consumption has been reduced by 50% compared to the conventional fluorescent lamp type.
・ It is the same level of illuminance and diffusion as a fluorescent lamp.
・ square lens prevents distortion of the outer circumference of the lens that occurs with a round lens, making it possible to work for long periods of time.
・ ON/OFF switch is located on the head for improved operability.
・ It is equipped with an AC adaptor for power supply.
・ “OSL-PUL (power-up lens)” is available as an option to increase the magnification from 2X to 4X. (Only the product with a 2x lens can be used.

■Product Name
LED lighting magnifier

LED-OSL-4 (free arm type)

■Product Specifications

Magnification 2x, 4x
Allowable lens dimension (mm) 100×140
Lens Material Optical glass
Working distance (mm) 2x/160, 4x/110
Lens Type Fixed
Multi-coating Setting Not available
Light source White LEDs 2 pcs.
Wavelength 400 nm
Input voltage 100〜240V: 50/60 Hz: Plug Type A
Power consumption 9W
Dimming Function Not available
Product weight 2X: 3.5kg / 4X: 4.5kg
Overall height (mm) 900
Head Dimensions (mm) 180X237
Possible clamping width (mm) 15~60
AC adapter dimensions (mm) 64x50x27
