■Product features

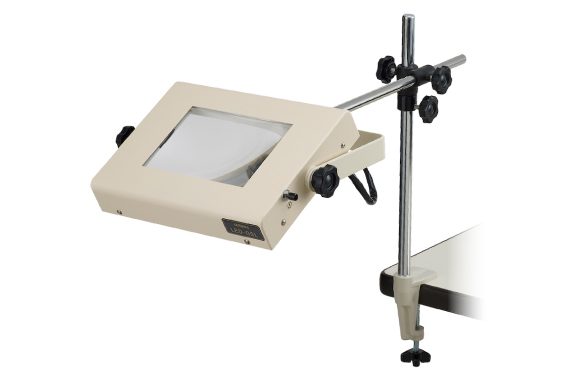

・ LED-OSL-3 model is a flexible and easy-to-use product that can be fixed to a workbench or other location with a clamp attached to a pillar.
・ LED-OSL-3 reduces power consumption by 50% compared to the conventional fluorescent lamp type.
・ LED version of the light is achieved while maintaining the same level of illumination and diffusion as a fluorescent lamp.
・ square lens prevents distortion of the outer circumference of the lens that occurs with a round lens, making it possible to work for long periods of time.
・ ON/OFF switch is located on the head for improved operability.
・ long horizontal bar and the pillar are arranged in the X and Y directions, and the long horizontal bar makes it possible to use it like a free arm, although the effect is limited.
・ AC adapter is used as the power supply.
・ optional “OSL-PUL (power-up lens)” which increases the magnification from 2x to 4x is also available. Only the product with a 2x lens can be used.

■Product Name
LED lighting magnifier

LED-OSL-3 (long bar type)

■Product Specifications

Magnification 2x, 4x
Allowable lens dimension (mm) 100×140
Lens Material Optical glass
Working distance (mm) 2x/160, 4x/110
Lens Type Fixed
Multi-coating Setting Not available
Light source White LEDs 2 pcs.
Wavelength 400 nm
Input voltage 100〜240V: 50/60 Hz: Plug Type A
Power consumption 9W
Dimming Function Not available
Product weight 2X: 2.9kg / 4X: 3.9kg
Overall height (mm) 355
Head Dimensions (mm) 180X237
Brace / Bar (diameter/mm) ɸ16/ɸ13
Clamping width (mm) 15 to 60
AC adapter dimensions (mm) 64x50x27
