Modelight Series, OLED under-shelf lighting, TE270D

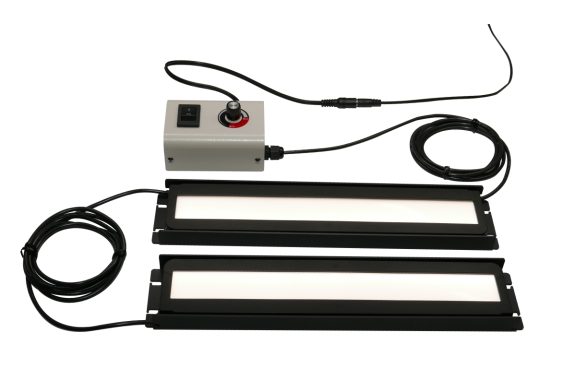

TE270D (OLED under-shelf lighting)
■Product Features
・Next generation inspection lighting: Inspection lighting that can be freely adjusted to suit the space.
・The TE270S allows flexible positioning of light and workpiece.
■Product Name
(OLED under-shelf lighting)
■Model Name
TE270S
■Product specifications
| Illumination | |
|---|---|
| Light source | OLED lighting panel |
| Input rated input voltage | 100～240V・50/60Hz・Aplug ※it can be used from 125 to 240V,By changing the cord with AC plug. |
| Rated power consumption | 7W |
| Dimming function | Yes（100％〜10％） |
| Illuminance directly under the center (Max) | 1120LX/150mm 360X/300mm 150LX/500mm (measured by our measurement method, Per panel) |
| Illuminance directly under the center (Min) | 80LX/150mm 25LX/300mm 10LX/500mm (measured by our measurement method, Per panel) |
| Color temperature | 4000K (white) |
| Average color rendering index (Ra) | 90 |
| Luminous surface size (mm) | L273×W30 |
| Total luminous flux（lm） | 200 (per panel） |
| AC adapter model, rating | UNIFIVE336-2415(24V/1.5) Weight：270ｇ |
| Main body | |
| Weight (Kg) | 1.0 (including main body weight controller) |
| Dustproof/waterproof protection class | IP20 (for indoor use only) |
| Clampable width (mm) | 15-60 (board thickness) |
