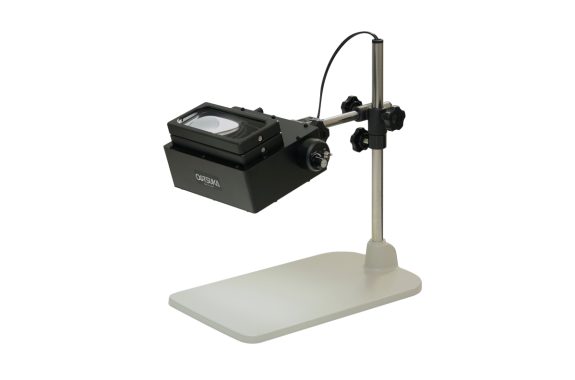

LED coaxial illumination magnifier, Surflight series
SL130B
■Product Features
・The magnifier has finally been converted to coaxial illumination, combining the features of the illuminated magnifier and coaxial illumination.
・The coaxial illumination can illuminate the object under observation from the same direction as the optical axis of the lens, making it possible to visualize the unevenness of the object under observation.
・The magnification can be switched between 2X and 4X, and AR coating is applied to reduce annoying glare.
・The rectangular shape of the lens is similar to the human field of view, allowing both eyes to see the observed object in three dimensions
■Product Name
Surflight
■Model Name
SL130B（Table Stad type)
■Product Specifications
| Lens | |
|---|---|
| Line Up | 2x, 4x switchable (area magnification) Optical lens glass lens with AR (anti-reflection) coating |

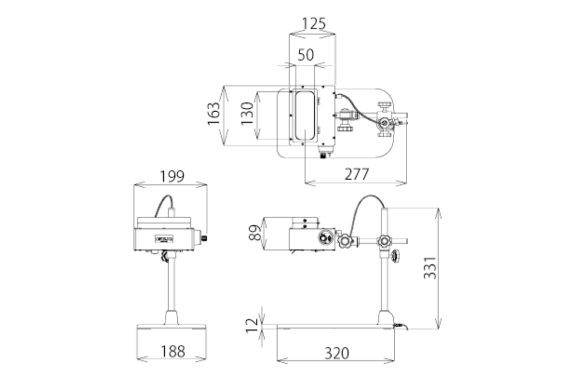

| Lens dimensions | Effective diameter130mm×50mm |
| Illumination | |
| Light Source | White LED |
| Rated power consumption | 16W |
| AC adapter type | UNIFIVE336-2415(24V/1.5) Weight: 270g |
| AC adapter input voltage | AC100V～240V 50/60Hz |
| AC adapter shape | A plug |
| AC adapter cord length | 1800m |
| Dimming function | Yes (100 to 0%) |
| Main body | |
| Dustproof and waterproof protection class | IP30 (for indoor use only) |
| Operating temperature range | ０℃～３５℃ |
| Weight | 3kg |
