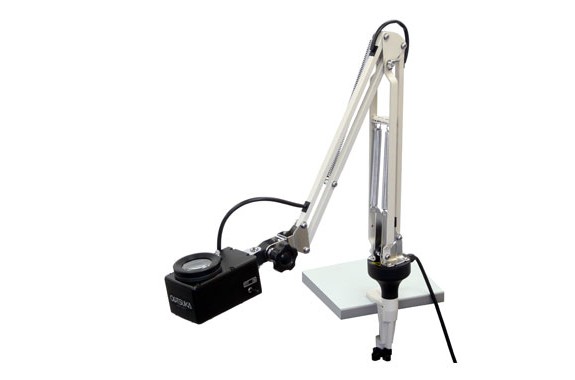

BORELOUPE F

■Product features
A product developed for inspection of inner and bottom side of small holes, blind holes, or deep-channel.
The F-type comes with a free-arm,
making it a user-friendly product with high-flexibility with use and installation.
By adopting coaxial lighting and making the optical axis of human gazes and light the same, the inspection of the holes’ inside are made possible.
The switchable magnification of 2x/3x is equipped as the standard and the LED is used for the light source.
As an option, the “polarizing filter” for inspecting specular objects, “BORE loupe-PUL” for improving magnification,
and “Working distance extender WDE-B” to extend working distance to inspect the inside of longer holes are available.
All options are to be used for 3x lenses.

■Product Name
LED illuminated loupe for checking holes, grooves, and inside walls

■Model
BORELOUPE-F

■Product Specifications

Lens
Magnification 2x, 3x
Lens dimension (mm) ɸ40
Lens Material Optical glass
Working distance (mm) 2x/147, 3x/55
Lens Type Fixed
AR (anti-reflection) Coated Lens Not available
Lighting
Light source LED
AC adapter input voltage 100~240V:50/60 Hz:Plug Type A
Power consumption 1.2 W
Dimming Function Not available
Body
Product weight 2.0 Kg
Arm length 600 mm

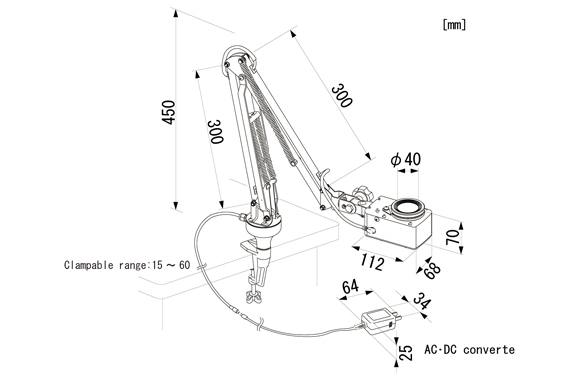

Head Dimensions 112X68X70H (mm)
Possible clamping width (mm) 15~60
Operating temperature range 0℃ ~ 35℃
Dustproof and waterproof protection grade IP30
