BARLIGH 2A:Incandescent color/ 2Y: yellowish green

■Product Features

・Model A is a incandescent color and Model YG is a yellowish green light source. It corresponds to variations in worker’s eye fatigue, color, material, gloss, etc. of the object to be inspected.
・The bar light is an inspection light for detecting unevenness defects such as scratches, dust, and dents on the surface more easily by illuminating the object with a flat beam of light through a combination of high-luminance LEDs arranged in parallel and a lens.。
・It can be used not only by itself but also in combination with an illumination magnifier or other optical equipment as an auxiliary light to improve the detection of defects.
・The Bar Light 2 does not have adjustable light intensity and beam spread angle, and all of them are fixed

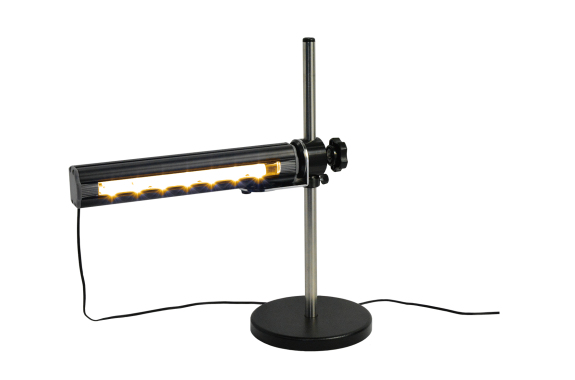

・The “Tilt Stand” can be used to fix a single unit, the “Double Tilt Stand” can be used with two units, the “Bar Light Free Arm” is suitable for environments requiring a high degree of freedom, and the “Bar Light Grip” can be held with one hand.
■Products Name
LED light for checking surface flaws
■Model Name
BARLIGHT 2A/YG

■Product Specification

Operating temperature range0℃~40℃

Lighting
Light source LED x 7pcs
Input voltage 100V:50/60 Hz:Plug Type A
*The voltage cannot be polarized.
Illuminance( Irradiation divergence angle 6°/measured value) 150mm/15000Lx、 200mm/10000Lx、 300mm/5800Lx、400mm/3600Lx
Power consumption 8W
Dimming Function Not available
Adjustment function for irradiation divergence angle Not available
Cord length (mm) Ac Adapter: 1800
Body
Weight(g) 370g (illuminating head/300g)
Operating temperature range 0℃ ~ 40℃
Dustproof and waterproof protection grade IP40(Indoor use only)
