■Product features
LEK WIDE-CL is a product with two lightings; epi-illumination around the lens, and transillumination in the box.
The LEK series can individually turn on/off or dim the lighting.
In addition to the appearance inspection by epi-illumination, you may inspect the inside of a permeable object using transillumination or check the condition of the outer circumference.
The light source of the LED is molded to the same shape as the 30W type fluorescent tube, and a resin protective cover is attached to light emission side.
In addition, the light distribution characteristic of the lighting is set to the same level of the fluorescent tube, enabling smooth replacement from the fluorescent type illuminated magnifier.
With the volume switch, you may adjust the brightness of the lighting to the desired level between 100% and 50%

■Product Name
LED Illuminated Magnifier

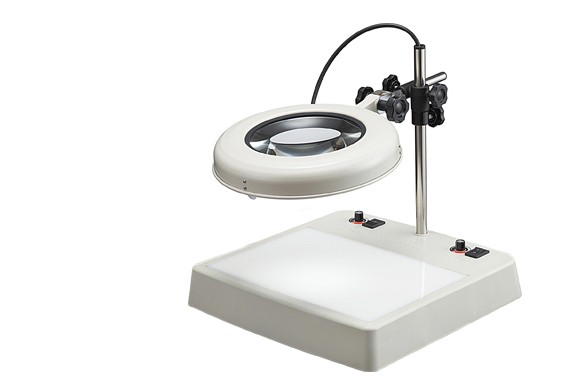

LEK WIDE-CL (lightbox-type illuminated magnifier)

■Product Specifications

Magnifier Lens Magnification Lineup WIDE 2x, WIDE 3x, WIDE 4x (WIDE series replacement lens system)
AR (anti-reflection) Coated Lens Lineup Available / WIDE 2x, WIDE 3x, WIDE 4x
Light source Epi-illumination/Transillumination White LED
Input voltage 100~240V : 50/60 Hz : Plug Type A
* It is possible to use up to 125~240V by changing the cord with attached AC plug.
For more information, please contact your dealer.
Power consumption 14W+9W
Standby power 0W
Dimming Function Available / 100~50% Each epi-illumination/transillumination can be turned on or adjusted individually.
Weight (Kg) 3.3 (without lens/body weight)

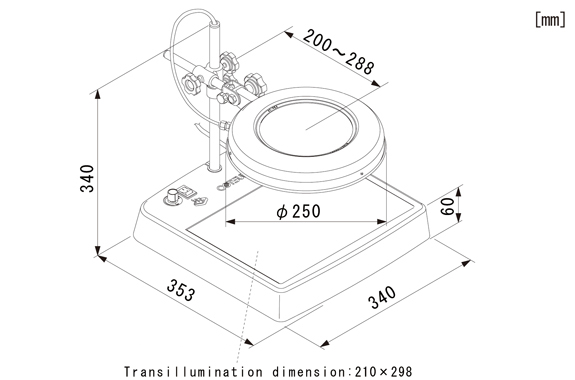

Overall height (mm) 340
Head Dimensions (mm) ɸ250
Brace / Bar (diameter/mm) ɸ16/ɸ13
Transillumination Dimensions (mm) 210×298
Operating temperature range 5℃~35℃
Dustproof and waterproof protection grade IP30 (indoor use only)
